Polarization Maintaining Splitters

Product 1x2 and 2x2 Dual-Output Modulators.png

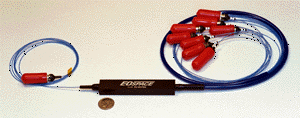

A low-loss polarization maintaining splitter



Key Specifications

  Polarization Maintaining Splitter
Excess Insertion Loss (dB) < 3.0
Output Uniformity (dB) < 0.5
Output Polarization Extinction Ratio (dB)  >20
Available Splitting Ratios 1x8, 1x16
Operating Wavelength (mircon)  1.55 (C-Band and L-Band)
Input Fiber Polarization Maintaining
Output Fiber Polarization Maintaining

Optical Connections: FC/UPC Standard (FC/APC & Others)

Options: Voltage Tuneable

Options: Custom Configurations

Options: 1.06 & 1.3 micron Operating Wavelength


All specifications subject to change without notice.
